CHIN HUNG MACHINERY

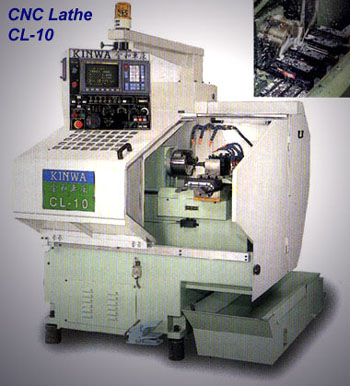

GANG TOOLS CNC LATHE CL-10/CL-12



    Optional Accessories

¡@
Processing speed is faster than other nc lathe
  • Gang type table saves work time of tools' feeding, changing, and return.
  • Using tool holder when the workpieces are various kinds and small quantity. When the workpiece wanna be changed, only alter programs. It is more convenient and economical than automatic lathe and automatic turning machine.

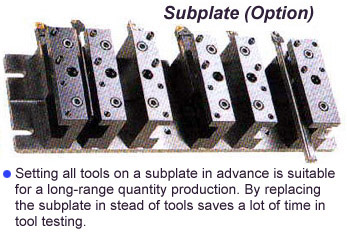

  • All sets of special subplate can be changed. Setting all of tools on subplate in advance is suitable for long-rang and large quantity processing. Don't alter the tools one by one, only replace the subplate when change workpiece. Saving large time of tool test.
Standard Accessories :

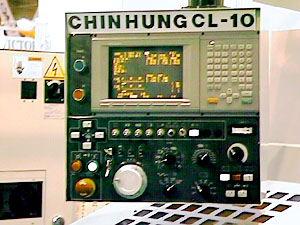

  • FANUC OT-C controller
    •  click.gif (896 bytes)
  • 6" hollow hydraulic chuck for CL-10
  • AD-65 collet chuck for CL-12
  • Hard jaws & soft jaws 1 set/each
  • Single tool holder 4 pcs
  • Double tool holder-1 pc
  • Drill holder 1 pc
  • Boring bar socket (M8, 10, 16, 20, 25) 1 pc/each
  • Drill socket (MT#2, 3) 1 pc/each
  • Coolant tank & Coolant system, motor 1/4 HP
  • Splash guard, Work light
 Optional Accessories :
  • Subplate
  • Single, Double tool holder for Subplate
  • Drill holder for Subplate
  • Chip conveyor & chip bucket
  • Transformer
  • Spindle mechanical orientantion, 15¢X, 24 position
  • Drill attachment 1 HP
  • Graphic Display

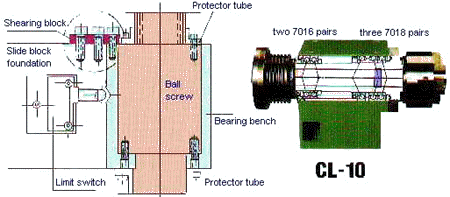

  Over-Travel stopper were designed foe Z-Axis to prevent any accident. Spindle is consisted of Angular-contact precision bearings for high accuracy, thust, radial load.

../symbol/lingreen.gif (1619 bytes)
Specifications :
ITEM / MODEL CL-10 CL-12
Swing over bed 320 mm (12 3/5 inch)
Standard workpiece dia. 150 mm (5 9/10 inch)
Standard workpiece length 100 mm (3 15/16 inch)
X axis stroke 480 mm (18 7/8 inch)
Z axis stroke 250 mm (9 27/32 inch)
Spindle speed 80~4000 rpm 60~3000 rpm
Spindle nose A2-5 A2-6
Bearing dia of spindle 90 mm (3 17/32 inch) 100 mm (3 15/16 inch)
Spindle bore 50 mm (1 31/32 inch) 75 mm (2 20/21 inch)
Bar capacity 42 mm (1 17/26 inch) 65 mm (2 14/25 inch)
Toolholder type Gang type fixed on cross slide
OD tool shark ¡¼ 20 mm ( ¡¼ 11/14 inch)
ID tool shark(Max.) f 25 mm ( f 1 inch)
Feed traverse X/Z-axis 16 m / min
Spindle motor (30 min) 10 HP / 7.5 kw
Hydraulic unit motor 1 HP / 0.75 kw
Coolant pump motor 1/4 HP / 0.18 kw
CNC controller model FANUC-OT-C @
Machine height 1900 mm (74 4/5 inch)
Machine floor space 1750 x 1900 mm (68 9/10 x 74 4/5 inch)
Machine weight 2100 kgs (4630 lbs) 2200 kgs (4850 lbs)

¡@
