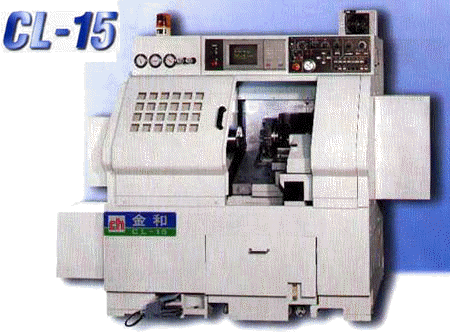

CNC LATHE CL-15
greenball.gif (257 bytes) Standard & Optional Accessories     greenball.gif (257 bytes) Specifications


Standard Accessories :
  • FANUC OT-C controller   click.gif (896 bytes)
  • Main motor 10 HP, Spindle speed 4500 rpm
  • Hydraulic system
  • 6"hollow hydraulic chuck
  • Hard jaw & soft jaws 1 set/each
  • Coolant tank & coolant system, motor 1/3 HP
  • Moving doors & splash guard
  • Hydraulic tailstock, moving center MT #3
  • Work light
  • Baring bar holder 4 pcs
  • One set of manuals
  • Boring bar socket M8,M10,M12,M16,M20 1 pc/each
  • Drill socket MT#2 2 pcs
Optional Accessories :
  • Spindle speed 6000 rpm
  • Programmable tailstock
  • Transformer
  • Chip conveyor & chip bucket
../symbol/lingreen.gif (1619 bytes)
Specifications
ITEM / MODEL CL-15
mm inch
Capacity Swing over bed 300 11 4/5
Standard tuming diameter 160 6 1/3
Max. workpiece diameter 200 7 8/9
Max. workpiece lenght 250 9 4/5
Stroke X /Z   axes stroke 110 / 290 4 1/3  / 11 2/5
Max. speed 4500 rpm ; (OPT : 6000 rpm)
Spindle Spindle nose f 140 f  5 1/2
Spindle bore 55 2 1/6
Spindle bearing ID 90 3 4/7
Bar capacity 45 1 3/4
Turret Turret type 8 Station
OD / ID tool shank ¡¼ 20 /f 25 ¡¼ 3/4 /f 1
Feed
trarse		 X / Y Axes 16 / 20 m/min 630 / 787 inch/min
Tailstock stroke 320 12 3/5
Tailstock Quill diameter 50 1 31/32
Quill taper MT # 3
Quill stroke 75 2 61/64
Motor Main motor (30 min) 10 HP () 7.5 kW
Servo motor (X / Z axes) 1.2 HP / 1.3 HP 0.9 kW/1 kW
Hydraulic motor 2 HP 1.5 kW
Coolant pump motor 1/3 HP 0.25 kW
Machine
dimension		 Height 1890 74
Floor space 1700 x 1170 67 x 46
Weight 2500 kgs 5512 lbs

¡@

¡@
