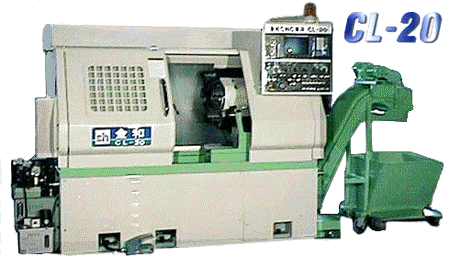

CNC LATHE CL-20

cl20x.jpg (36647 bytes </td> </tr> </table> <table width=
Standard Accessories :
  • FANUC OT-C controller   click.gif (896 bytes)
  • 8"hollow hydraulic chuck
  • Main motor 15 HP
  • Hydraulic system
  • Hard jaws & soft jaws 1 set/each
  • Coolant tank & hight power coolant system, motor 1HP
  • Moving doors & splash guard
  • Hydraulic tailstock, Moving center MT #4
  • Work light
Optional Accessories :
  • Spindle speed 4000 rpm
../symbol/lingreen.gif (1619 bytes)
Specifications
ITEM / MODEL CL-20
mm inch
Capacity Swing over bed 420 16 5/9
Standard tuming diameter 240 9 1/2
Max. workpiece diameter 250 9 8/9
Max. workpiece lenght 500 19 5/7
Distance between centers 550 21 17/16
Stroke X /Z   axes stroke 140 / 530 5 1/2  / 20 8/9
Max. speed 3200 rpm (4000 rpm-OPT)
Spindle Spindle nose A2-6
Spindle bore 62 2 1/2
Spindle bearing ID 100 3 13/14
Bar capacity 52 2 1/20
Turret Turret type 8 Station
OD / ID tool shank ¡¼ 25 /f 40 ¡¼ 1 /f1 1/2
Feed
trarse		 X / Y Axes 16 / 20 m/min 630 / 787 inch/min
Tailstock stroke 550 21 17/26
Tailstock Quill diameter 75 2 19/20
Quill taper MT # 4
Quill stroke 100 3 13/14
Motor Main motor (30 min) 15 HP 11 kW
Servo motor (X / Z axes) 1.3 HP / 2.8 HP 1 kW/2.1 kW
Hydraulic motor 2 HP 1.5 kW
Coolant pump motor 1 HP 0.75 kW
Machine
dimension		 Height 1800 71
Floor space 3450 x 2200 156 x 87
Weight 3200 kgs 7055 lbs

¡@
