UNIVERSAL CNC LATHE CL-38 SERIES
greenball.gif (257 bytes) Standard & Optional Accessories     greenball.gif (257 bytes) Major Dimensions
    greenball.gif (257 bytes) Specifications     greenball.gif (257 bytes) Detail Features     greenball.gif (963 bytes) Thread Peeling
¡@

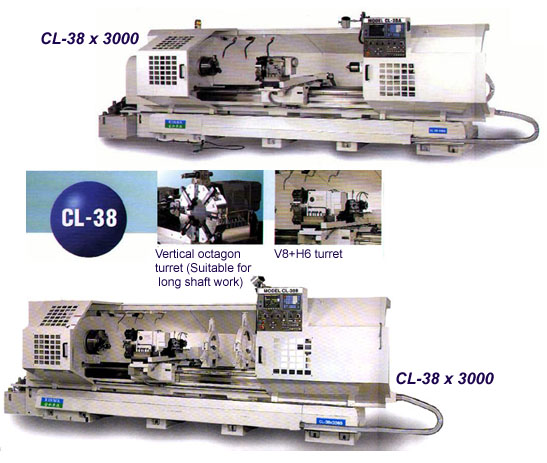

greenball.gif (963 bytes) The CL-38 is a perfect balance between heavy turning and high precision
     requirement. Designed to be a universal CNC turning lathe suitable for
     medium to large workpiece, for barstock, shaft, and chucker machining.
     Incorporated with choice of turrets, the CL-38 offers flexible working
     modes in both production/non-production jobs.

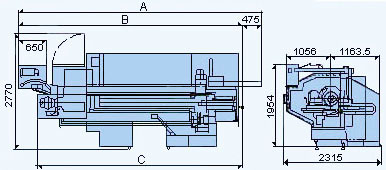

Major Dimensions
space		 A B C

Unit :mm
1500

5000/
5540/
6050/
6550/
7570
x 2970

4830 4355 3905
2000 5330 4855 4435
2500 5830 5355 4905
3000 6330 5855 5435
4000 7570 6855 6435

Standard Accessories
  • FANUC OT
    •  click.gif (896 bytes)
  • Spindle motor 30 HP
  • Spindle bore 120 mm (4 3/4, A2-11
  • Front turret (Vertical octagon turret or 4 station hydraulic turret)
  • Hydraulic sysrem
  • Work lamp
  • Coolant tank & Cooolant system
  • Double doors & Splash guard
  • Manual tailstock
  • One set of manuals
  • One set of adjusting tools & tool box
  • High-power coolant system motor 2HP
  • Steady rest with roller jaws 40 ~ 235 mm (1 3/5~ 9")
 Optional Accessories
  • Spindle bore 168 mm (6 3/5"), A2-11
  • Rear turret ( 6 station or 4 station hydraulic turret or Vertical octagon turret)
  • Steady rest with roller jaws 190 ~ 405 mm (7 1/2 ~15 19/20")
  • Follow rest 30 ~140 mm (1 1/5~5 1/2")
  • Hydraulic tailstrock
  • Chip conveyor
  • 12", 15", 18", 21" hydraulic chuck
  • 12", 16", 20" 3-jaw manual chuck
  • 16", 20" 4-jaw manual chuck
  • Air chuck 350, 460, 500

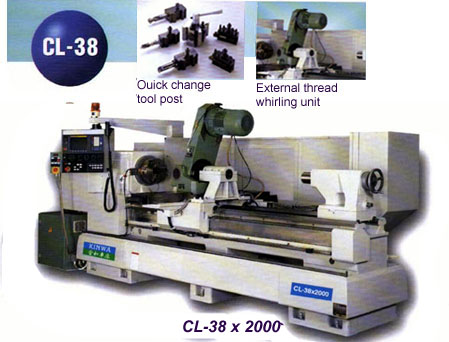

  • Driven tool system
  • Seft-centering steaty rest
Specifications
ITEM / MODEL CL-38x1000 CL-38x1500 CL-38x2000 CL-38x3000 CL-38x3500
Maximum Swing mm 660
inch 26
Swing over cross slide mm 370
inch 14 3/5
Width of bed mm 435 (460)
inch 17 (18 1/9" )
Max. cutting diameter mm 600
inch 23 2/3
Distance between centers mm 1000 1500 2000 3000 4000
inch 39 59 79 118 158
Spindle speed 6 ~ 2000 rpm ; (B-type : 3~1000 rpm)
Spindle nose A2-11
Spindle bore mm A-type: 120 mm  ; B-type: 168 mm
inch A-type:4 5/7 ; B-type: 6 3/5
Number of speed ranges 2 gears
Type of turret H 4 or H6 or V 8
Travel   X axis mm 460 (540)
inch 18 1/10 ( 21 2/7")
Z axis mm 1000 1524 2032 3048 4064
inch 39 60 80 120 160
Rapid traverse (X/Z axis) 10 m/min
Tailstock quill stroke 200 mm
Tailstock quill diameter 100 mm
Tailstock quill taper MT # 5
Floor space LxW mm 4500 / 5500 / 5540 / 6550 / 7570 x 2970
inch 177 / 217 / 218 / 258 / 298 x 117
Total power repuired
(Machine only)		 28 KVA Note: Actual machine main transformer
KVA rating will be greater
Machine height mm 1960
inch 77
Machine weihght kg 5700 6200 7200 8100 9000
Ib 12566 13669 15873 17857 19842

¡@
