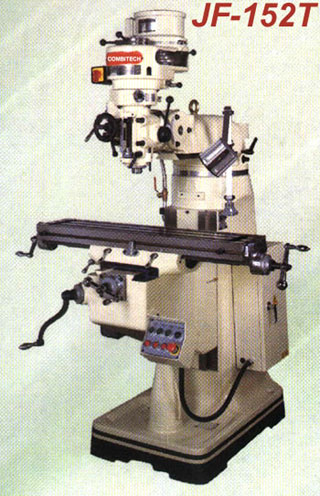

Combitech Vertical Turret Milling Machine

Taiwan Combined Technologies

High-Precision Vertical Turret Milling Machine

Standard Accessories:

Tool & tool box & Manual

Draw bar

Back way cover

Spindle supported by P.4 class bearings

Chrome plated precision ground quill

Harded & ground X-Y ways

Hardened & ground table

Optional Accessories :

Electrical cabinet

Coolant system

Power feed for X,Y,Z axis

Clamping kits

Milling chuck

9" x 49" warking table

Chip pan

Working lamp

Turcite B

Double wall column

Vise

SPECIFICATIONS :

ITMES		JF-152T
		mm	inch	Main Feature
Table size		230x1067	9x42	Exceptionally high stiffness of machine body one-picec casting of bed and column of box structure and special DOUBLE-WALL design. Times the rigidity and dampering capacity that traditional ribs can offer.
Longitudinal travel		762	30
Cross travel		305	12
Vertical travel of knee		406	16
Spindle motor		2 HP
Spindle taper		R8 or MST 30
Spindle speed		50 HZ(16 speed):60 ~ 4530 rpm 60 HZ(16 speed):80 ~ 5440 rpm
Quill travel		127	5
Quill feeds		.0016, .003, .005	.0016,.003,.005
Approximated met weight		930 kgs	2050 lbs
Packing dimensiont	1set/1case	1370x1400x1880	54x55x74
	2set/1case	1420x1575x1880	56x62x74
	3set/1case	1420x2210x1880	56x87x74
