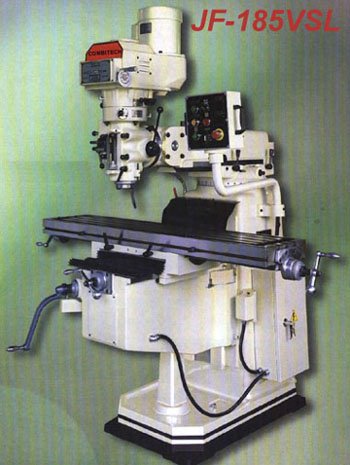

High-Precision Vertical Turret Milling Machine
185vslx.jpg Standard Accessories:
  • Tool & tool box & Manual
  • Draw bar
  • Back Way cover
  • Spindle supported by P.4 class bearings
  • Turcite B on both sides of saddle
  • Harded & ground X-Y-Z axis sliding ways
  • Hardened & ground table surface
  • Autor lubrication system
  • Coolant system
  • Coolant tray
  • Motor drive on the knee travel
  • Electric cabinet with hanging control panel
Optional Accessories :
  • Power feeds for X,Y axis
  • Power drawber
  • Working lamp
  • Milling chuck
  • Clamping kits
  • Vise
    •
SPECIFICATIONS :
ITMES JF-185VSL
mm inch Main Feature
Table size 320x1473 12 1/2x58 amil.jpg
Longitudinal travel 1067 42
Cross travel 394 15 1/2
Vertical travel of knee 406 16
Spindle motor 5 HP
Spindle taper MST 40
Spindle speed 50 ~ 3750 rpm
Quill travel 127 5
Quill feeds .038, .076, .203 .0015,.003,.008
Quill diameter 105 4 2/15
Swivelling angle of head 90 deg.
Head outward and inward 45 deg.
Spindle taper to table distance 50 ~ 435 1 31/32~1711/87
Approximated met weight 1450 kgs 3197 lbs
Packing dimensiont 1set/1case 1680x1570x1930 63x62x76
3set/1case 2210x1570x1930 87x62x76
cmil.jpg dmil.jpg

¡@
