Taiwan Combined Construction

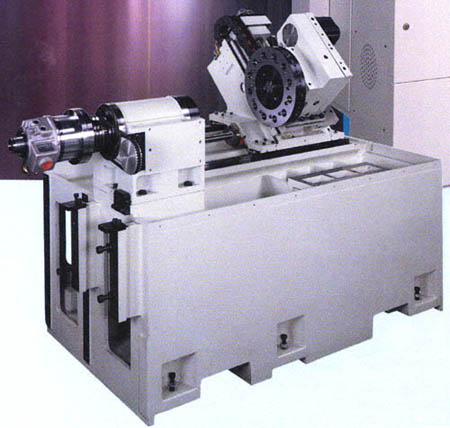

CNC Lathe RUGGER BASE
The one piece base is manufactured from high tensile Meehanite cast iron, stress relieved and precision ground, The Japan improted linear motion guide on the bed ways assures smooth and accurate feeding. Bed ways are protected by one piece guard.
DIFFERENTIAL BED WAYS CONFIGURATION : Designed with advanced differential bed way (ladder structure) configuration, which combines extreme smoothness and a slant bed, uniform load distribution, and minimum wear resistance in one unit.

T-Series Specifications                                   unit: mm
ITEM	T - 6		T - 8 / T - 8A
TRAVEL
Maximum swing	ψ420		ψ550
Swing over carriage cover	ψ330		ψ330
Maximum turned diameter	ψ200		ψ250
X axis travel	180		220
X axis travel (Max. turned length)	370		550
Carriage inclination	45 °		45 °
SPINDLE
Spindle center height	920		950
Spindle nose	A2-5		A2-6	A2-8
Power chuck diameter	ψ6"(169)		ψ8"(210)	ψ10"(254)
Power chucking system	Hydraulic		Hydraulic
Spindle bore	ψ56		ψ62	ψ87
Drawtube (bar) capacity	ψ45		ψ52	ψ75
Spindle front bearing	ψ90		ψ100	ψ130
Max. spindle speed	STD: 6000 rpm OPT: 4000 rpm		4500 rpm	3500 rpm
Spindle motow	5.5 / 7.5 kw		15/18.5 kw	18.5/22 kw
Min. spindle speed for full motor power	1125 (750) rpm		1200 rpm	1000 rpm
AXIS
X & Z Axis rapid traverse rate	12 & 20 m/min		12 & 20 m/min
X Axis slide way configuration	Double linear way		Double linear way
X Axis motor	0.6kw 6Nm/2000 rpm		1 kw 12Nm/2000 rpm
X Axis ball screw (dia. xpitch)	ψ32 x 6		ψ32 x 6
Z Axis slide way configuration	Double linear way
Z Axis motor	0.6kw 6Nm/2000 rpm		1 kw 12Nm/2000 rpm
Z Axis ball screw (dia. xpitch)	ψ32 x 10		ψ40 x 10
TURRET
Turret motor	0.6 kw 6Nm/2000 rpm		0.6 kw 6Nm/2000 rpm
Turret tool disc diameter	ψ340	ψ380	ψ410
Turret type	VDI3425/30	8 station	VDI 3425/30
Number of tool station	12	8	12
Turning tool shank dimensions	20 x 20		25 x 25
Max. boring bar diameter	ψ32		ψ40
Tool travel below center line	22		27
TAILSTOCK
Tail stock quill taper	No. 4 MT		No. 5 MT
Quill diameter and travel	ψ75 x 100		ψ95 x 125
Max. quill thrust	795 kgs		1007 kgs
