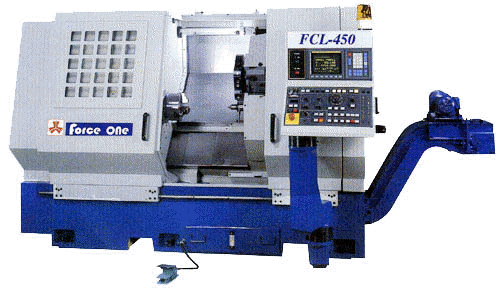

2-Axis ~ 3-Axis CNC LATHE FCL-450

Ą@
Power Turret Specification
Ą@
Standard Accessories High pressure cooling system 80 liter capacity cooling tank Hydraulic turret 12-position, Type: 240A Auto lubrication system Tool & tool box Work lamp, AC 24V 70W M30 program stop light Hydraulic Unit Heat exchanger unit of electric box coolingr Chip conveyor and bucket Hydraulic chuck A2-6 8" Hydraulic tailstock Fanuc OTC controll & 9" CRT with standard-keyboard	Optional Accessories: C.E. electric control Auto tool setter measurement Manual tool length measurement Electric turret, Type: 160 Main transformer 22KVA Auto door & Safety switch Auto parts catcher Prevent crash install of each axes (Safety equlpment) Bar feed interface C Axis with driving tool & turret with disc C Axis contour capability a. Duplomatic BS-TR-160 radil, VDI 30, 12-position power turret with FANUC alpha spindle motor. (Excluding ratating tool holder and tools) b. High resolution magnetic puls coder incorporated into main AC Spindle motor precision contour /index control.

FCL-450 Specification

MODEL			FCL-450
			mm	inch
Capacity	No. of control axis		STD: 2 Axis ; OPT: 3 Axis (C Axis)
	Swing over bed		Ø 450	Ø 17⁵/₇
	Max turning dia		Ø 220	Ø 8²/₃
	Work length		455	17²¹/₂₃
Headsyock & Nain spindle	Spindle nose, internal taper (STD;OPT)		ASA A2-6 MT No.6; ASA A2-8 96 Ø 96 mm Taper 1/20
	Spindle bore (STD;OPT)		Ø 61 ; 90	Ø 2²/₅ ; ⁶/₁₁
	Bar capacity (STD;OPT)		Ø L:51 ; 75	Ø 2 ; 2²⁰/₂₁
	Hydraulic power chuck (STD;OPT)		Ø 210;254 or 304	Ø 8⁷/₂₆;10 or 12
	Range of spindle speed (STD;OPT)	X / Z Axis	50~4500 rpm;35~3500 rpm
		C Axis	40~3750;25~2500 rpm
	No. of spindle speed		infinitely variable
Cross slide (X-axis) & Carriage (Z-axis) & Sub spindle	Longitdinal travel	Z Axis	560	22
	Cross slide travel	X Axis	170	6⁹/₁₃
	AC servo motor	X Axis	1.0 kW	1.4 HP
		Z Axis	1.0 kW	1.4 HP
	Dia of ball screw	X Axis	Ø 32 P10	Ø 1⁶/₂₃ P10
		Z Axis	Ø 36 P10	Ø 1⁵/₁₂ P10
	Rapid traverse speed	X Axis	16 m/min	630 ipm
		Z Axis	20 m/min	787 ipm
	Cutting feed rate (X/Z Axis)		0.001~500 mm/rev
Turret (L/R)	Tool station (Random)	STD	Hydraulic P12
		OPT	Elec V12
	Size of external turning tool		20 x 20	¹⁵/₁₉ x ¹⁵/₁₉
	Boring bar dia		Ø 32	Ø 1⁶/₂₃
Motor	Main spindle (continuous)		Ł\ P12 750/6000 rpm AC 5.5 kw (7.5HP); 7.5kw (10HP)
	Main spindle (30 min, rating)		Ł\ P12 750/6000 rpm AC 5.5 kw (7.5HP); 7.5kw (10HP)
	Hydraulic oil pump		1.5 kW	2 HP
	Coolant pump		0.375 kW x 2	1/2 HP x 2
Tank capacity	Hydraulic tank		55 Litre
	Coolant tank		80 Litre
Measurement	Floor space (L X W)		3500 x 2300	138 x 90¹¹/₂₀
	Total height		1900	74⁴/₅
	Weight (N.W./G.W.)		4000 / 4500 kgs	8818 / 9921 lbs
