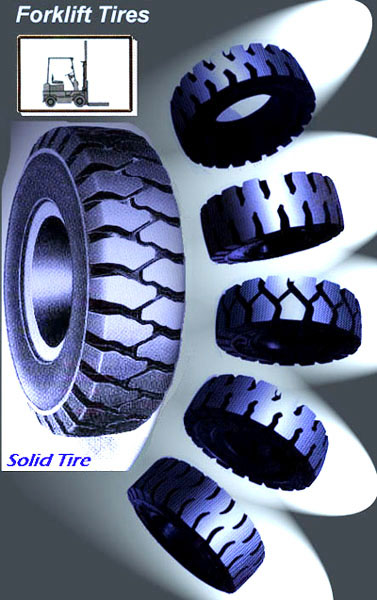

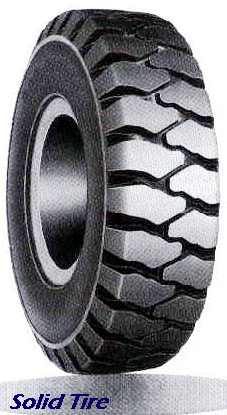

Combitech Forklift Trucks Parts - Solid Tire with Internal Combustion Engine

Specification unit: mm & inch

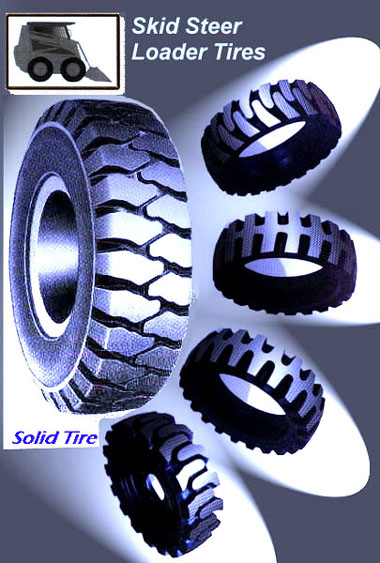

to all model (Forklift Tires) (Skid Steer Loader Tires)	Model	Tire Leight mm	Tire Width mm	Tire Weight kg	Max. Load Capacity kgf
	500 - 8	452	120	16	1390
	600 - 9	533	153	27	1800
	650 -10	584	179	39	2500
	700 - 12	660	171	46	2900
	815 - 15	710	220	65	3450
	825 - 15	825	215	97	4700
	300 - 15	835	290	127	5700
	18 x 7 - 8	448	165	21	1800
	21 x 8 - 9	528	186	32	2700
	23 x 9 - 10	580	207	48	3000
	750 - 16	800	193	67	3500
	900 - 20	1040	250	160	6200
	1000 - 20	1040	250	160	6200
	30 x 10 - 20	745	235	53	3550
	31 x 10 - 20	775	235	61	3800
