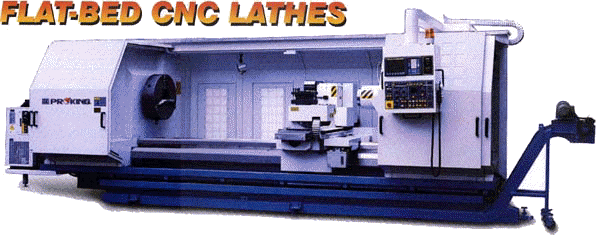

FLAT - BED CNC LATHES
BN-50.60.70 series
Customer Specification available, Actual specifications subject to individual requirements.
 |
STANDARD ACCESSORIES :
|
OPTIONAL
ACCESSORIES :
|
| BN-Series SPECIFICATIONS ..................................................unit : mm (inch) |
| ITEM / MODEL | BN-50 SERIES | BN-60 SERIES | BN-70 SERIES | ||||
| mm | inch | mm | inch | mm | inch | ||
| Swing over bed | 1275 | 50 1/8 | 1527 | 60 1/8 | 1790 | 70 1/2 | |
| Swing over cross slide | 850 | 33 13/28 | 1100 | 43 4/13 | 1370 | 54 | |
| Distance between center mm(") |
2000,3000,4000,5000,6000,7000,8000,9000,10000,11000,12000 (79,118,158,197,236,276,315,354,394,433,472) |
||||||
| Bed width | 712 mm (28 1/32") | ||||||
| Spindle nose | A2-11, A2-15, A2-20, A2-28 Special | ||||||
| Spindle bore | mm | 153, 230, 318, 360, 410, 510 | |||||
| inch | 6, 9 1/8, 12 13/25, 14 4/23, 16 1/7, 20 2/25 | ||||||
| Spindle taper | 1/20 | ||||||
| Gear transmission | 4 - Step | ||||||
| Spindle speed | 4~500, 3~400, 2.5~300, 2~250, 1.5~180 rpm | ||||||
| AC spindle motor | AC 35/30 HP | ||||||
| Turret | H4, H6, 350 mm square. STD | ||||||
| Square shank tool size | 32 x 32 mm (1 1/4x1 1/4") | ||||||
| Max. Travel speed | X-axis : 6 M (236 ")/min ; Z-axis : 8 M (315")/min | ||||||
| Cutting speed | X-axis : 0.001-250 mm/rev ; Z-axis : 0.001-400 mm/rev | ||||||
| Tailstock spindle traverse | 125 ~ 235 mm(4 21/23 ~ 9 1/4 inch) | ||||||
| Tailstock spindle taper | MT # 6 | ||||||
| X-axis servo motor | 3.7 HP | ||||||
| Z-axis servo motor | 5.8 HP | ||||||
| Coolant pump motor | 1/2 HP | ||||||
| Control | FANUC, MITSUBISHI or CUSTOMER SPECIFIED | ||||||
| Machine weight kg (lb) |
2000 mm (79") Center distance | 1100 (24251) | 12000 (26455) | 13000 (28660) | |||
| Each additional 1000 mm (39.4") increment | 1250 (2756) | 1350 (2976) | 1450 (3197) | ||||
 |
 |
 |
¡@
