HYRAULIC STRAIGHT-SIDE PRESS



 greenball.gif STRAIGHT-SIDE
    PRODUCTS

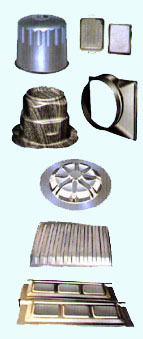

    EXAMPLES
     yctexam.jpg		 yctlogo.jpg

TYPE

YCT-100
YCT-150
YCT-200
YCT-250
YCT-300
YCT-400
YCT-500
YCT-600
YCT-800
YCT-1000
To -- greenball.gif Main Featerus     greenball.gif Specifiation     greenball.gif YCT Series - $ Prices

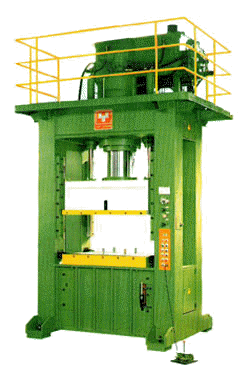

YCT-SERIES
linered.gif MAIN FEATURES:
     These hydraulic presses are specially designed for precision deep drawing of metal plates. Available from 100 to 2000 tons they offer high efficiency and accuracy.
     Our design incorporates a special loop control system in order to meet the modern industrial requirement of high speed production and extreme safety..
  • Safe and accurate control systems give simplified operation and high efficiency.
  • Special features: Logical hydraulic system, Anti-leaks, Anti-vibration, beautiful appearance and easy to maintain.
  • Specialists in manufacture of hydraulic bending machines with strict quality control Integrated manufacturing process and excellent after sales service.
yctauto.jpg yctlogic.jpg yctoilfi.jpg
greenball.gif AOTO-LUBE DEVICE
    For continuous lubrication
    of the slides.		 greenball.gif HYDRAULIC LOGIC
     MANIFOLD
     Arranged for easy
    connection to
    hydraulic pipework
    and simple to
    maintain.		 greenball.gif OIL FILTER
     Located outside oil tank
    for easy cleaning.

SPECIFICATIONS
ITEM   / MODEL YCT-100 YCT-150 YCT-200 YCT-250 YCT-300
Capacity Ton 100 150 200 250 300
s.ton 110.23 165.35 220.46 275.58 330.69
Table area mm 800x700 1000x850 1200x1000 1350x1100 1500x1200
inch 32x28 39x34 47x39 53x43 59x47
Daylight mm 650 800 950 1000 1100
inch 25 3/5 32 37 39 43
Stroke mm 500 600 700 800 800
inch 19 5/7 23 3/5 27 3/5 31 1/2 31 1/2
Cushion capacity Tons 30 50 70 80 100
s.ton 33.07 55.16 77.16 88.19 110.23
Cushion stroke mm 180 200 () 250 250 300
inch 7 7 8/9 9 4/5 9 4/5 11 4/5
Descending speed mm 200~250
inch 7 8/9 ~ 9 6/7
Pressing speed mm/sec 15~20 10~15
inch/sec 2/3~4/8 2/5~2/3
Ascending speed mm/sec 250
inch/sec 9 4/5
Drive motor 15 HP 20 HP 30 HP 30 HP 40 HP

¡@

¡@
