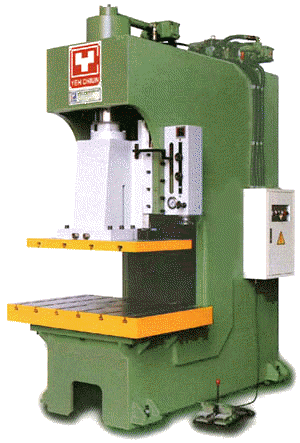

C-FRAME HYRAULIC PRESS

TYPE

YCT-C10
YCT-C20
YCT-C30
YCT-C50
YCT-C100
YCT-C150
YCT-C200

To -- greenball.gif Main Featerus & Application     greenball.gif Specifiation

YCT/C SERIES
linered.gif MAIN FEATURES
  • The machine structure is C-Frame. All the parts are included in machine body, the operation is safe and simple.
  • Design is simple and free of trouble.
  • The machine is multiple purpose, we are able to modify the design and enhance functions to meet your special requirement.
APPLICATIONS
  • Press in and push out of shafts and sockets.
  • The bending and deep drawing of sheet metal.
  • Straighten, forming, shear and punching.
  • Compressing testing.
  • Production of computer cabinet and parts.
  • Office furniture components including drawer, rails.
  • Cabinet and components of refrigeration and air conditioning.
SPECIFICATIONS
ITEM/MODEL YCT-C10 YCT-C20 YCT-C30 YCT-C50 YCT-C100 YCT-C150 YCT-C200
Capacity ton 10 20 30 50 100 150 200
s.ton 11.02 20.05 33.07 55.16 110.23 165.35 220.46
Table area mm 550x425 600x425 600x500 700x600 750x600 900x700 1000x800
inch 22x17 24x17 24x20 28x24 30x24 35x28 39x32
Daylight mm 450 450 450 500 600 800 800
inch 17 5/7 17 5/7 17 5/7 19 13/19 23 18/29 31 12/25 31 12/25
Stroke mm 300 300 300 350 400 550 600
inch 11 13/16 11 13/16 11 13/16 13 18/23 15 3/4 21 17/26 23 18/29
Descending
speed mm/sec
160 160 170 180 200 200 200
Pressing speed
mm/sec
10 15 14 14 14 14 10
Ascending speed
mm/sec
170 160 160 180 200 200 200
Drive motor 3 HP 7.5 HP 10 HP 15 HP 20 HP 25 HP 30 HP

¡@
