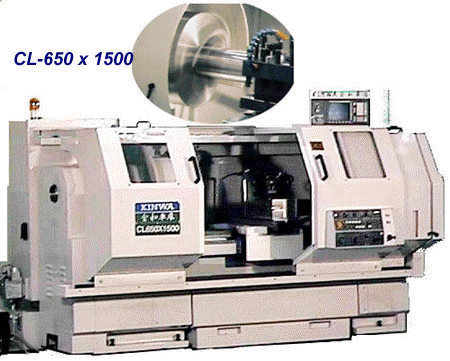

UNIVERSAL CNC LATHE CL-560/CL-650
    greenball.gif (257 bytes) Specifications     greenball.gif (257 bytes) Detail Features     greenball.gif (963 bytes) Either one of two


greenball.gif (963 bytes) Universal CNC lathe is bigger and longer than the slant bed
     CNC Iathe in the workarea.
     And there is a saving in investment costs .

Standard Accessories
  • Spindle bore 104 mm
  • Main motor 15HP
  • 12" 3-jaw manual chuck
  • Drive plate 12"
  • Dead center (MT #5) 2 Pcs
  • Center sleeve MT # 7x5
  • Accessories for turret 1 Set
  • Steady rest(S) 40~255 mm
  • Coolant system & coolant tank
  • Splash guard
  • Manual tailstock
  • Tool box
 Optional Accessories
  • Spindle bore 86 mm (3 5/13")
  • 12" 3-jaw hydraulic chuck
  • 16" 4-jaw chuck
  • 20" 4-jaw chuck
  • Follow rest
  • Steady rest (L) 190~405 mm
    (7 1/2 ~1519/20")
  • Hydraulic tailstock
  • Chip conveyor
Specifications
ITEM / MODEL CL-560 CL-650
mm inch mm inch
Capacity Max. Swing 560 22 650 25 3/5
Swing over camiage 315 12 3/5 410 16 1/7
Max. turning diameter 500 19 13/19 600 23 5/8
Width of bed 400 15 3/4 400 15 3/4
Distance between centers mm 900, 1450, 2250
inch 35 1/2, 57, 88 4/7
Controller FANUC OT click.gif (896 bytes) or FANUC 20TA click.gif (896 bytes)
Stroke X Axis mm 350
inch 13 7/9
Z Axis mm 850, 1460, 2260
inch 33 1/2, 57 1/2, 88
Spindle Spindle speed-2 gears 10 ~ 2000 rpm(10~2500 rpm)
Spindle nose A2-8
Spindle bearing ID mm 140 (120)
inch 5 14/27 (4 21/29)
Spindle bore mm 104 (86)
inch 4 2/21 (3 7/18)
Turret Turret type Quick change tool post QCT or V8 H 4
OD tool shank QCT:¡¼ 32
V8:¡¼ 25		 QCT: ¡¼ 11/4
V8 : ¡¼ 1		 ¡¼ 25 ¡¼ 1
ID tool shank(Max.) f 40 f 1 4/7 f 50 f 131/32
Feed traverse (X/Z axis) 10 m/min
Tailstock Quill diameter mm 75
inch 2 19/20
Quill taper MT # 5
Quill stroke mm 180
inch 7 1/11
Motor Main motor (30 min) 15 HP / 11 kW
Coolant pump motor 1/2 HP / 0.375 kW
Machine
imension		 Hight mm 1905
inch 75
Floor space mm 2900,3510,4320 x 1827
inch 114,138, 170 x 72
Weight kg 2700 ~ 3050
Ib 5952 ~ 6724

¡@
