FANUC 20 CHIN HUNG TC-22 & TC-26 & CL-560/CL-650 Series with Internal Combustion Engine

Machining Guidance Function

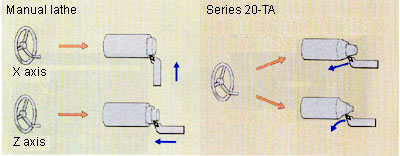

The machining guidance function is basic one which enable a simultaneous 2 axis operation, example, slant line and arc cutting, with a single handle. Using this function, both operations, a cutting direction and an approach direction toward a right angle of the cutting direction are possible. And the guidance screen which shows the turning direction of a handle, cutting direction and a distance of the work piece are always displayed on the CRT. Use of the handle gives the operator the feeling of using a general-purpose machine tools.
