Combitech Forklift Trucks, Diesel Engine Specifications, ISUZU C240/PKF-19

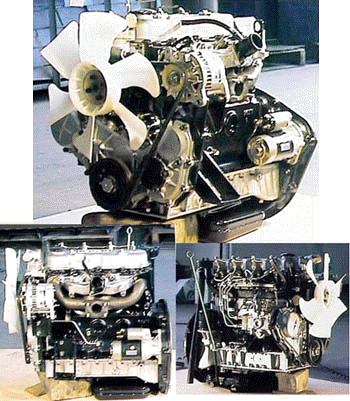

ISUZU DIESEL C240/PKF-19 ENGINE

ISUZU DIESEL C240/PKF-19 ENGINE SPECIFICATIONS

Engine Model	C240/PKF-19
Application	Forklift
Type	Four Cycle, Water Cooled, Overhead Valve Vertical In-Line , Swirl Chamber
CYL. No. -Bore x Stroke	4-86 x 102 mm
Displacement	2369 cm³
Compression Ratio	21 To 1
Firing Order	1-3-4-2
Performance (JIS D1005)
Rated Power	32.0 kW (44 ps) / 2500 min -1
Max. Torque	134 Nm (13.7 kg -m) / 1800 min -1
Idle Engine Speed	700 ± 25 min -1
No Load Max. Engine Speed	2750 ± 50 min -1
Air Intake System	Naturally Aspirated
Lubrication System	Full Forced Pressure Feed Type
Oil Pump	Trochoid Type Oil Pump By Camshaft Driven
Angularity Limit	Front Down & Front Up 0.436 Rad (25 deg.) Side To Side 0.524 Rad (30 deg.)
Lubrication Oil Capacity	Max. 5.2 Min 4.0 Lit
Type of Lubrication Oil	API CC OR CD
Cooling System	By Pressurized Water Forced Circulation Type, Centrifugal Vane Type, By Vee Belt Driven
Cooling Capacity	5.0 Li t. (Engine Only)
Fan Speed Ratio	1.05 (Crankshaft Pulley Dia./Fan Pulley Dia.)
Timing Gear PTO
Speed Ratio To Crank	1 To 1
Rotation Direction	Counter Clockwise Viewed From Front
Number of Tooth	10
Fuel System	By Plunger and Nozzle, High Pressure Solid INJ. Type
Injection Pump & Governor	Zexel Make, Distributor Bosch VE Type Injection Pump, All Speed Mechanical Governor, Containing Fuel Feed Pump
Injection Timing	0.157 red. (9 deg.) BTDC
Inj. Nozzle Opening Pressure	Zexel Make, Throttle Type 11.8x10 3 kPa (120 kgs/cm 2)
Type of Fuel	Diesel Fuel
Electrical System	Negative Grounding System, 12 V
Starting Aid	Sheathed Glow Plug
Starter	12 V-2.2 kW
Alternator	12 V-35 A
Dry Weight	252 kgs (556 lbs)
Dimensions (L x W x H)	713 x 561 x 667 mm (28 x 22 x 26")
