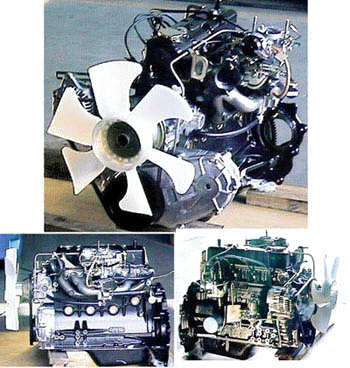

NISSAN DIESEL H25 ENGINE


NISSAN DIESEL H25 ENGINE SPECIFICATIONS

Engine Model    H25
Application    Forklift
Type    Gasoline Four Cycle,
Fuel Supply     Carburetor
Cylinder    Vertical four
Valve Mechanism    OHV
Diameter x Travel    92 x 93 mm
Total Disylacement    2472 cc
Compression Ratio    8.7
Engine Dimension    L   687 mm
  W   576 mm
  H   654 mm
Dry Weight    162 kgs
Rated Horsepower    58 PS / 2400 rpm
Max. Torque    18.3 kgm / 1600 rpm
Min. Fuel Consumption rate     200 g / PS-h
Fuel Type    Lead Free
Ignition    Battery Switch Contact less
Ignition Plug    BP4ES
Governor Type    Mechanical Type
Cooling System    By Pressurized Water Forced Circulation Type
Cooling Fan Diameter    380 mm
Cooling Water Capacity    3.5 liter
Lubrication System    Forced Feed Type
Lubricant Tank    3.8 liter
Voltage    12 V (Earth)
Starter Torque    12 - 1.2 V-KW
Alternator Capacity    12-35 V-A
** Specification change subject to change without notice.

¡@
